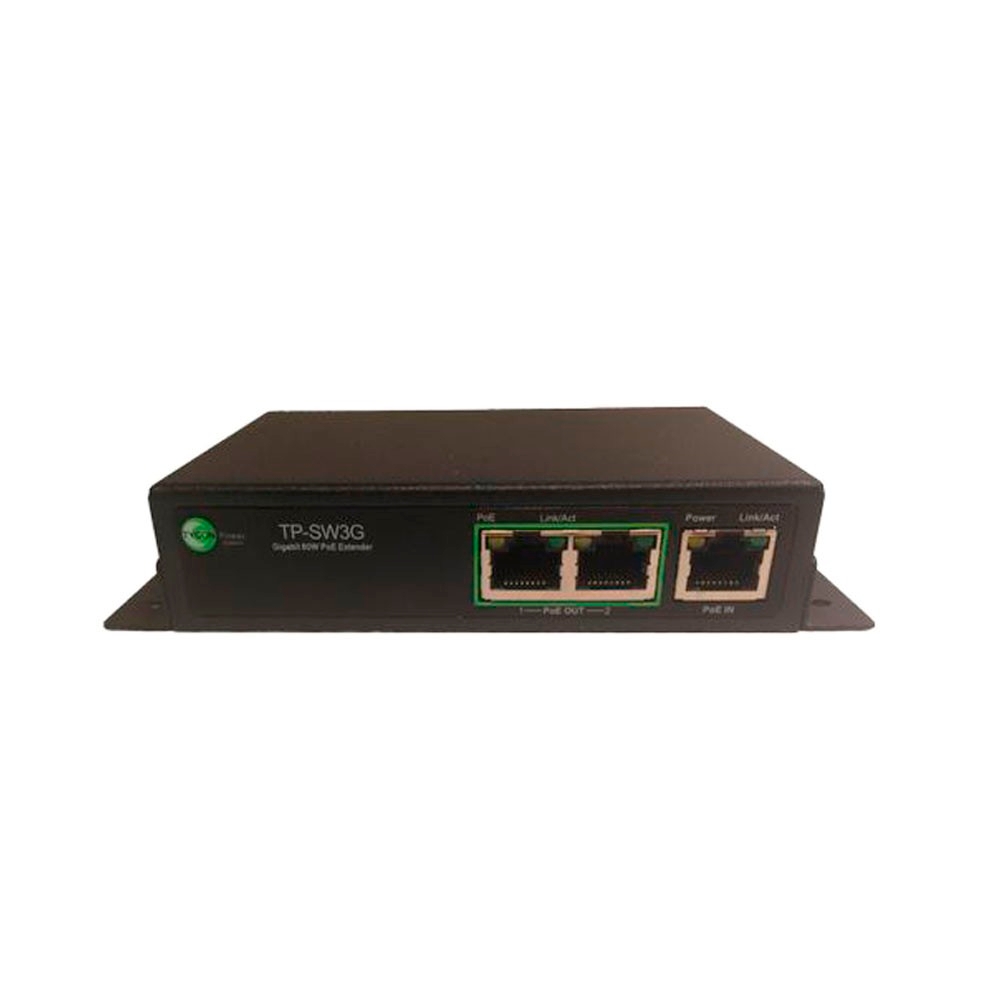

Tycon Power TP-SW3G | 3 Port GigE 802.3af/at PoE Unmanaged Switch, 802.3af/at or Passive PoE 2/4pair Input, Dual 802.3at PoE Output
Product Highlights
Model#: TP-SW3G
Sku: IT2930
MSRP: $112.99
In Stock
Your Price: $99.99
MODEL: TP-SW3G
The TP-SW3G Power over Ethernet (PoE Switch) 3-Port Gigabit switches from Tycon drive high-performance networking, delivering up to 30W of PoE power per port while enabling seamless, high-speed Ethernet switching.
It immediately accepts both Gigabit data and power through the RJ45 “PoE In” port, making integration effortless. Supporting IEEE802.3af, IEEE802.3at, and IEEE802.3at 4-pair (60W) standards, plus 42-57VDC Passive PoE, it adapts to a wide range of setups and power needs.
The two 802.3af/at Gigabit “PoE Out” ports efficiently supply up to 30W per port, covering distances of up to 100m (330ft). By linking multiple TP-SW3G units, you can extend your network up to 300m, all without needing additional power sources, as the units are powered directly through PoE.
Built for reliability and compatibility, the TP-SW3G works with Category 5 or higher Ethernet cables. Its shielded and grounded RJ45 connectors ensure optimized performance with minimal interference. For tough environments, it offers 15kV surge protection and a conformal coating for moisture resistance. With a wide operating temperature range, the TP-SW3G excels in outdoor and industrial settings, ensuring dependable, long-term performance.
Features
- PoE Switch
- 3 Gigabit Ports, Easy Plug and Play Operation
- Extends the range of PoE and Ethernet an additional 100 meters or more
- Compatible with IEEE802.3af and IEEE802.3at and IEEE802.3at 4 Pair (60W)
- No Additional Power Supply is Required
- Built-in Surge Protection
- Automatic MDI/MDI-X Crossover
- Automatic Speed and Duplex Sensing
- Low Self Power and High Temperature Operation
- CE and FCC Certification
- Compact Desktop or Wall Mount Design and Compatible with DIN Rail Adapters
- I.T.E. Power Supply, UL Listed
Applications
- Add another PoE and Data Port without running more Ethernet Cable
- Extend Ethernet and PoE an additional 100 meters per each TP-SW3G
Specifications TP-SW3G
| Ports | 1 data/PoE input and 2 data/PoE outputs, automatic crossover and polarity |
| Transmission Speed | 1000 Mbps (Gigabit) / 100 Mbps /10 Mbps Auto-negotiation |
| Connections | Shielded RJ45, Grounded to case |
| PoE Input Port | Vin 44VDC to 57VDC, PoE Pinout: 1,2(V-); 3,6(V+) and/or 7,8(V-); 4,5(V+) |
| PoE Output Ports | Vout 42VDC to 55VDC, Pin assignment: V-(1,2), V+(3,6) |
| PoE Output Power | 30W per port Maximum, 60W Total |
| POE Compatibility | IEEE802.3af (PoE), IEEE802.3at (PoE+), 802.3at 4 Pairs (60W) High PoE |
| POE Protections | Over Temperature, Over Current, Short Circuit |
| Surge Protection | IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) |
| Self Consumption | < 1.5 Watt Typical |
| LED’s | Link (Green On), Activity (Green Blinking ), PoE Detect (Yellow On) |
| Switch Technology | Store and Forward |
| Protocol | CSMA/CD |
| Flow Control | IEEE802.3x(full-duplex), Back Pressure(half-duplex) |
| Data Transmission Rate | 148800pps ,14880pps |
| Address Table | 1K MAC, self-learning |
| Operating Temp | -30 to +60°C (-22 to 140°F) |
| Operating Humidity (RH) | 5% - 90% (non condensing) |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Dimensions (LxWxH) | 119 x 85 x 28mm (4.7 x 3.3 x 1.1”) |
| Weight | 280g (9.9oz) |
